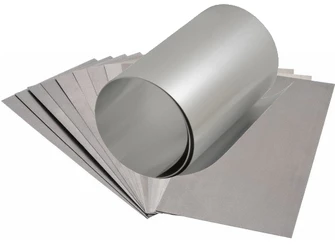

Shim stock is material used to fill gaps found in between objects or surfaces that join. When surfaces of an object are placed together sometimes they leave a space in between and that's where shim stock is wedged. These materials have the ability to be shaped to fit precisely into the space that they are intended for.
1100/1145/1235 Aluminum
Lightweight Shim Stock Rolls
- Full hard temper
- Cold rolled
- Non-magnetic
- Lightweight
- Width tolerance: +0.005"
- Length tolerance: +1/16"
- Meets ASTM: B209
260 Brass Spring Steel Rolls
- Half hard temper
- Cold rolled
- Non-Magnetic
- Width tolerance: +0.01"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 30T 56-58
- Meets ASTM: B18 & B36
260 Brass Spring Steel Sheets
- Half hard temper
- Cold rolled
- Non-Magnetic
- Width tolerance: +1/2", -1/4" for 6"x25" sheets, +1/16" for 8"x12"
- sheets
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 30T 56-58
- Meets ASTM: B19 & B36 FOR 6"x25"sheets, ASTM B36m for 8"x12" sheets
510 Bronze Spring
Steel Rolls
- Spring temper
- Cold rolled
- Magnetic
- Width tolerance: +0.01"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 30T 76-80
- Meets ASTM: B103
510 Bronze Spring
Steel Sheets
- Spring temper
- Cold rolled
- Magnetic
- Width tolerance: +0.01"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 30T 76-80
- Meets AMS: 4510
110 Copper Shim
Stock Rolls
- Soft (annealed) temper
- Cold rolled
- Most electrically conductive available
- Non-magnetic
- Width tolerance: +0.01"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 15T 47-57
- Meets ASTM: B152
110 Copper Shim Stock Sheets
- Soft (annealed) temper
- Cold rolled
- Most electrically conductive available
- Non-magnetic
- Width tolerance: +0.01"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: 15T 47-57
- Meets AMS: 4500
Metric 1008-1010 Low-Carbon
Steel Rolls
- Full hard temper
- Cold rolled
- Magnetic
- Width tolerance: +0.5mm for 6" wide
- Length tolerance: +2mm
- Minimum Rockwell hardness: B90
- Meets ASTM: A109 & Fed. Spec. QQ-S-698
1008-1010 Low-Carbon
- Steel Rolls
- Full hard temper
- Cold rolled
- Magnetic
- Width tolerance: +0.005" for 6" wide , +0.01"wide for 12" wide
- Length tolerance: +1/8"
- Minimum Rockwell hardness: B90
200/201 Nickel ShimStock Rolls
- Soft (annealed) temper
- Cold rolled
- Magnetic
- Width tolerance: +0.005"
- Length tolerance: +1/16"
- Rockwell hardness: B42-B67
1095 Spring Steel Rolls
- Full hard temper
- Cold rolled
- Magnetic
- Width tolerance: +0.0010"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: C48-C51
- Meets ASTM: A682, A684 & MIL-S-7947
1075/1095 Spring Steel
Sheets
- Full hard temper
- Cold rolled
- Magnetic
- Width tolerance: +0.0010" for 6" wide, +3/8", -0.010" for 12"wide,
- +1" for 24"wide sheets
- Length tolerance: +3", -1/2"
- Rockwell hardness: C48-C51
- 1075 meets ASTM: A682 & A684
- 1095 meets ASTM: 5122
18-8 Stainless Steel Rolls
- Full hard temper
- Cold rolled
- Mildly magnetic
- Width tolerance: +0.005" for 6"/12" wide rolls, +1", -0.010" for 24"
- wide rolls
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: C40-C45
- Meets ASTM: A666
Metric 18-8 Stainless
Steel Rolls
- Full hard temper
- Cold rolled
- Mildly magnetic
- Width tolerance: +0.5mm
- Length tolerance: +2mm
- Rockwell hardness: C40-C45
- Meets ASTM: A666
18-8 Stainless Steel Sheets
- Full hard temper
- Cold rolled
- Mildly magnetic
- Width & length tolerance: +1/8"
- Length tolerance: +1/2", -1/4"
- Rockwell hardness: C40-C45
- Meets ASTM: A666
301 Stainless
Steel Rolls
- Half hard temper
- Cold rolled
- Mildly magnetic
- Width tolerance: +0.015"
- Length tolerance: +1/2"
- Minimum Rockwell hardness: C32
- Meets ASTM: A666
316 Stainless Steel Rolls
- Soft (annealed) temper
- Cold rolled
- Mildly magnetic
- Width & length tolerance: +0.003"
- Length tolerance: +1"
- Maximum Rockwell hardness: B88
- Meets ASTM: A666
316 Stainless Steel Sheets
- Soft (annealed) temper
- Cold rolled
- Mildly magnetic
- Width tolerance: +0.005"
- Length tolerance: +1/8"
- Minimum Rockwell hardness: B88
- Meets ASTM: A240, A666
17-4 PH Stainless Steel Rolls
- Soft (annealed) temper
- Cold rolled
- Magnetic
- Width tolerance: +0.01"
- Length tolerance: +0.015"
- Rockwell hardness: C30-C38
- Meets ASTM: A693
17-4 PH Stainless
Steel Rolls
- Full hard temper
- Cold rolled
- Magnetic
- Width tolerance: +0.015"
- Length tolerance: +1/2"
- Rockwell hardness: C41
- Meets ASTM: A693
Grade 2 Titanium Shim
Stock Rolls
- Soft (annealed) temper
- Cold rolled
- Non-Magnetic
- Width tolerance: +0.015"
- Length tolerance: +0.015"
- Minimum Rockwell hardness: B80
Metal Shim Stock Sheet Assortments
1100 Aluminum Shim
Stock Assortment
- Full hard temper
- Cold rolled
- 0.001", 0.002", 0.003" & 0.005"
- Sheet size: 6" x 50"
- Number of Sheets: 4
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Meets ASTM: B209
260 Brass Shim
Stock Assortment
- Half hard temper
- Cold rolled
- 0.001", 0.0015", 0.002", 0.003", 0.004", 0.005', 0.006", 0.007", 0.008",
- 0.01", 0.012" & 0.015"
- Sheet size: 6" x 12"
- Number of Sheets: 12
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Rockwell hardness: 30T 56-68
- Meets ASTM: B19 &B36
260 Brass Shim
Stock Assortment
- Half hard temper
- Cold rolled
- 0.001", 0.002", 0.003", 0.004", 0.005', 0.0075", 0.01", 0.0125", 0.015" & 0.02"
- Sheet size: 8" x 12"
- Number of Sheets: 10
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Rockwell hardness: 30T 56-68
- Meets ASTM: B36
110 Copper Shim Stock Assortment
- Annealed temper
- Cold rolled
- 0.005", 0.01", 0.015", 0.02" & 0.025"
- Sheet size: 6" x 12"
- Number of Sheets: 5
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Minimum Rockwell hardness: B152
510 Bronze Shim Stock Assortment
- Spring temper
- Cold rolled
- 0.005", 0.008", 0.01", 0.013", 0.016", 0.02", 0.025" & 0.032"
- Sheet size: 6" x 12"
- Number of Sheets: 8
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Minimum Rockwell hardness: 30T 76-80
- Meets ASTM: B103

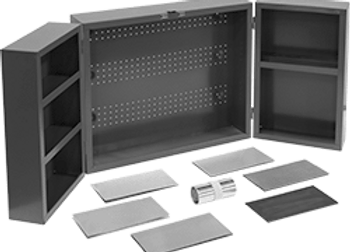

59 Sheet Multi-Material
Shim Stock Assortment
- Includes one 6" x 12" sheet of each thickness of 1100 aluminum, 260 brass, 510 bronze, 110 copper, 1010 low carbon steel, 1095 spring steel & 302 stainless steel
- Comes in a 24"H x 30"W x 11-1/2"D steel cabinet.
1008-1010 Low Carbon Steel
Shim Stock Assortment
- Full hard temper
- Cold rolled
- 0.002", 0.003", 0.004", 0.005", 0.007", 0.012", 0.015" & 0.02"
- Sheet size: 8" x 12"
- Number of Sheets: 9
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Minimum Rockwell hardness: B90
1010 Low Carbon Steel Shim Stock Assortment
- Full hard temper
- Cold rolled
- 0.001", 0.0015", 0.002", 0.003", 0.004", 0.005", 0.006", 0.007", 0.008",
- 0.01", 0.012" & 0.015"
- Sheet size: 6" x 12"
- Number of Sheets: 12
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Minimum Rockwell hardness: B90
- Meets ASTM: A109
1095 Spring Steel Shim Stock Assortment
- Spring temper
- Cold rolled
- 0.005", 0.01", 0.012", 0.015", 0.025" & 0.032"
- Sheet size: 6" x 12"
- Number of Sheets: 6
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Minimum Rockwell hardness: C48-C58
18-8 Stainless Steel Shim Stock Assortment
- Full hard temper
- Cold rolled
- 0.001", 0.002", 0.003", 0.004", 0.005", 0.007", 0.01", 0.012", 0.015" & 0.02"
- Sheet size: 8" x 12"
- Number of Sheets: 10
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Rockwell hardness: C40-C45
- Meets ASTM: A666
302 Stainless Steel Shim Stock Assortment
- Full hard temper
- Cold rolled
- 0.001", 0.0015", 0.002", 0.003", 0.004", 0.005', 0.006", 0.007", 0.008",
- 0.01", 0.012" & 0.015"
- Sheet size: 6" x 12"
- Number of Sheets: 12
- Width tolerance: +1", -1/16"
- Length tolerance: +1/2", -1/4"
- Thickness tolerance: +15%
- Rockwell hardness: C40-C45
- Meets ASTM: A666
