STAINLESS STEEL

Stainless steel is a metal alloy, made up of steel mixed with elements such as chromium, nickel, molybdenum, silicon, aluminum, and carbon. Iron mixed with carbon to produce steel is the main component of stainless steel.

Chromium is added to make it resistant to rust. The addition of nickel enhances corrosion resistance properties in case of aggressive usage. The addition of molybdenum gives localized corrosion resistance against scarring. Other alloying metals like copper, titanium and vanadium are also added in order to improve the properties and structure of stainless steel.

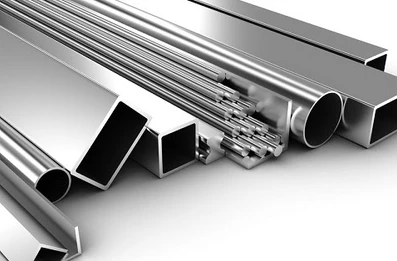

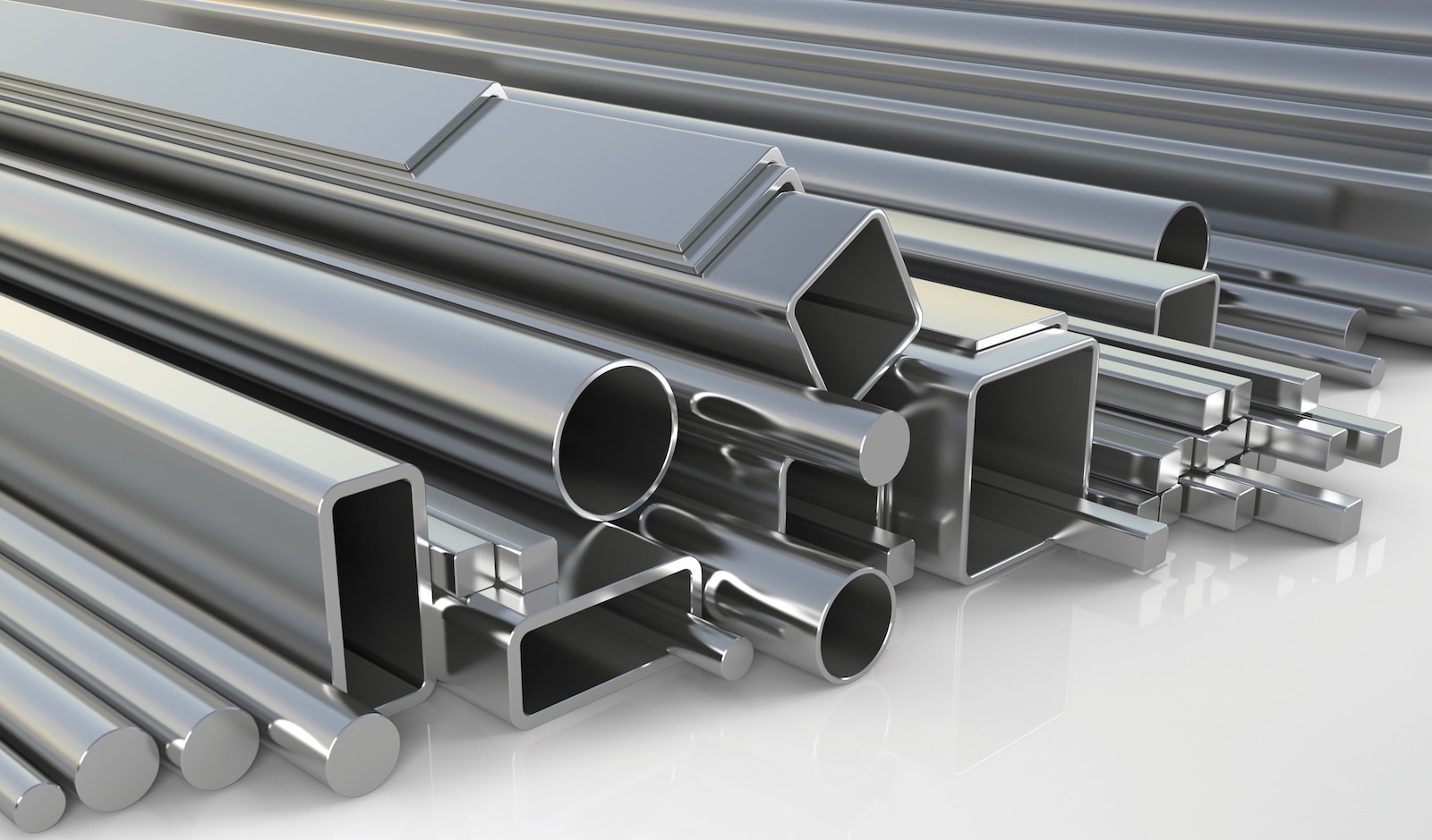

Shapes

  • Channel
  • Diamond Plate
  • Flat
  • Hex
  • Pipe
  • Plate
  • Round
  • Sheet
  • Square
  • Tube

Grades & Types

  • 13-8 PH
  • 15-5 PH
  • 17-4 PH
  • 17-4 H1150
  • 17-4 Heat Treat Duplex
  • 17-7 PH
  • 18-8
  • 2202
  • 2205
  • 2304
  • 301
  • 302
  • 303
  • 303SE
  • 304
  • 304B
  • 304/304L
  • 309
  • 310
  • 316
  • 316B
  • 316L
  • 316LVM
  • 317
  • 318
  • 321
  • 330
  • 409
  • 410
  • 416
  • 416HT
  • 416 Gun Barrel
  • 420
  • 420V
  • 430
  • 430F
  • 430FR
  • 431
  • 440A
  • 440B
  • 440C
  • 455
  • 465
  • 630
  • 647
  • 660
  • 904
  • A286
  • Alloy 20
  • Alloy 218
  • Annealed
  • Brushed
  • BSQ
  • Duplex
  • Ferritic
  • Invar
  • Kovar
  • Machinable
  • Maraging
  • Martensitic
  • Metric
  • Mil. Spec.
  • Mirror Finish
  • Nitronic 50
  • Nitronic 60
  • Perforated
  • Polished
  • Powdered
  • Precision Ground
  • Prodec
  • Project 70+
  • PSQ
  • S30V
  • Sintered
  • Slotted
  • Spring-Tempered
  • Textured
  • Weldable

13-8 PH High-Strength Stainless Steel

  • Able to be hardened at lower temps than other heat-treatable stainless steel
  • Corrosion resistant up to 1100°
  • Cold finished and annealed
  • Unpolished
  • Magnetic
  • Meets AMS: 5629
  • 2205 High-Strength Corrosion-Resistant Stainless Steel
  • Frequently used in high-pressure applications
  • Corrosion resistant up to 600°
  • Magnetic
  • Not heat treatable
  • Meets ASTM:
  • Sheets - A240/A923
  • Rods - A182/A276

15-5 PH Very High-Strength Stainless Steel

  • Excellent strength - often used for gears and shafts
  • Corrosion resistant up to 1100°
  • Cold finished and annealed
  • Magnetic
  • Heat treatable
  • Meets ASTM: 2300/5369

17-4 PH High-Strength Corrosion-Resistant Stainless Steel

  • Also known as 630 Stainless Steel
  • Corrosion resistant up to 1100°
  • Magnetic
  • Heat treatable - able to be hardened at low-temperature
  • Meets ASTM: Rectangular Bars, Rods - A564 Sheets, Strips - A693

301 High Strength Multipurpose
Stainless Steel

  • Able to withstand repeated stress and wear
  • Corrosion resistant up to 1550°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM: A240 for Sheets (Unpolished/Cold Rolled), A666 for Sheets/Strips (Spring-Tempered)

303 Easy-To-Machine Stainless Steel

  • Machines fast without sticking
  • Corrosion resistant up to 1550°F
  • Slightly magnetic
  • Annealed
  • Not heat treatable
  • Meets ASTM:
  • Bars - Hex: A484/A582, Bars -Rectangular Tight-Tolerance: A484/A582
  • Bars - Rectangular Unpolished: A314/A582
  • Rods - Precision Ground Tight & Super-Tight Tolerance: A314/A581/A582
  • Rods - Unpolished: A582
  • Sheets - Hot Rolled Unpolished: A895
  • Sheets - Precision Ground Tight-Tolerance: A895

304 Multipurpose Stainless Steel

  • Most commonly used stainless
  • Corrosion resistant up to 1500°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM:
  • Angles - 90°: A276/A479
  • Bars - 1/4" Thick Rectangular: A240
  • Bars - 1/2" & 1" Thick Rectangular: A479
  • Bars - 1/2" round: A276/A479
  • Bars - 1-1/2" to 5": A240
  • Bars - Tight-Tolerance: A276/A484
  • Bars - Up to 1" thick: A276/A479
  • Blanks - Tight-Tolerance: A240
  • Foil: A240
  • Rods: A276/A479
  • Sheets - Brushed/Mirror-Like Finishes: A240
  • Sheets - Machinable Hot Rolled: A240/A480
  • Sheets - Textured: A480
  • Sheets - Unpolished: A240
  • Strips: A240
  • T-Bars: A276/A479
  • Tubes - Metric Cold Drawn Polished: A213/A269
  • Tubes - Oval, Small Dia Round: A269
  • Tubes - Rectangular, Round: A554
  • Tubes - Round Cold Drawn Unpolished: A269/A511
  • Tubes - Textured Cold Rolled Unpolished: A554
  • 321 Weldable Stainless Steel
  • Weldable due to its titanium content
  • Corrosion resistant up to 1500°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM: A240

309 High-Temperature Stainless Steel

  • Used in furnaces and heat exchangers
  • Corrosion resistant up to 1500°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM: A240 for Rectangular Bars & Foil. A276/A279 for Rods (Unpolished)

316 Super Corrosion-Resistant Stainless Steel

  • Common uses include marine and chemical processing applications
  • Corrosion resistant up to 1500°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM:
  • Angles - 90°: A276/A479
  • Bars - Hex Cold Drawn Unpolished: A276/A479/A484
  • Bars - Hex Metric Cold Drawn Unpolished: A479
  • Bars - Rectangular Tight-Tolerance: A276
  • Bars - Rectangular: A276/A479
  • Blanks: A240
  • Foil - Cold Rolled Unpolished: A240/A666
  • Precision Balls - Reflective Finish: A493
  • Rods - Tight-Tolerance: A276
  • Rods - Unpolished Passivated: A276/A479/A484
  • Rods: A276/A479
  • Sheets: A240
  • Strips - Cold Rolled Unpolished: A240
  • Tubes - Rectangular Unpolished: A554
  • Tubes - Round Unpolished: A511

321 Weldable
Stainless Steel

  • Weldable due to its titanium content
  • Corrosion resistant up to 1500°F
  • Slightly magnetic
  • Not heat treatable
  • Meets ASTM: A240

410 Wear-Resistant
Stainless Steel

  • Wear-resistant
  • Corrosion resistant up to 1200°F
  • Magnetic
  • Heat treatable
    Annealed
  • Meets ASTM: A240 for Sheets, A276 & A479 for Rods

416 Very Easy-To-Machine Stainless Steel

  • Most machinable stainless steel
  • Contains sulfur for fast machining
  • Corrosion resistant up to 1200°F
  • Magnetic
  • Heat treatable
  • Meets ASTM:
  • Bars - Hex Unpolished: A484/A582
  • Bars - Square Cold Drawn Unpolished: A582
  • Rods - Hardened Tight-Tolerance: A582/A582M
  • Rods - Metric Hardened Tight-Tolerance: A582
  • Rods - Precision Ground Tight-Tolerance: A582
  • Rods - Unpolished: A484/A582
  • Sheets - Hot Rolled Unpolished: A895

420 Mold-Quality Wear-Resistant Stainless Steel

  • Can be polished very smoothly
  • Corrosion resistant up to 1150°F
  • Magnetic
  • Heat treatable
  • Rods meet ASTM: A276/A484
  • 440A Impact & Wear-Resistant Stainless Steel
  • Excellent impact and wear resistance
  • Common uses include cutlery and valve components
  • Magnetic
  • Nitronic 60 Wear & Corrosion-Resistant Stainless Steel
  • Excellent wear and corrosion resistance
  • Not magnetic
  • Not heat treatable
  • Meets ASTM: A276/A47

420V Very Wear-Resistant Stainless Steel

  • Excellent wear resistance due to the addition of vanadium and carbon
  • Magnetic
  • Heat treatable
  • Unpolished, hot rolled and annealed

430 Economy-Grade
Stainless Steel

  • Common uses include décor and light-duty applications
  • Corrosion resistant up to 1250°F
  • Magnetic
  • Not heat treatable
  • Meets ASTM: A240

440A Impact & Wear-Resistant Stainless Steel

  • Excellent impact and wear resistance
  • Common uses include cutlery and valve components
  • Magnetic

440C Ultra-Hard Wear-Resistant Stainless Steel

  • Excellent wear resistance
  • Corrosion resistant up to 800°F
  • Magnetic
  • Heat treatable
  • Meets ASTM: A276, A756 for Hardened/Reflective SS Balls

2205 High-Strength Corrosion-Resistant Stainless Steel

  • Frequently used in high-pressure applications
  • Corrosion resistant up to 600°
  • Magnetic
  • Not heat treatable
  • Meets ASTM:
  • Sheets - A240/A923
  • Rods - A182/A276

A286 Strengthened Corrosion-Resistant

  • Titanium added for more strength
  • Often used for fasteners and engine components
  • Corrosion resistant up to 1500°F
  • Not magnetic
  • Heat treatable

Alloy 20 Ultra-Corrosion-Resistant Stainless Steel

  • Contains columbium which helps prevent corrosion around welded points
  • Resistant to harsh acids and caustic environments
  • Not magnetic
  • Not heat treatable
  • Cold finished and annealed
  • Meets ASTM: B473

Nitronic 60 Wear & Corrosion-Resistant Stainless Steel

  • Excellent wear and corrosion resistance
  • Not magnetic
  • Not heat treatable
  • Meets ASTM: A276/A479

S30V Blade-Quality Wear-Resistant Stainless Steel

  • Excellent wear and corrosion resistance
  • Magnetic
  • Hot rolled and annealed with a ground finish
